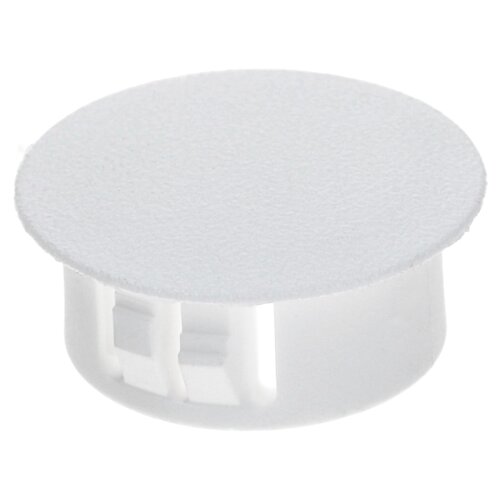

Heyco SNAP-IN Dome Plug 2674 DP-687 WHITE

In stock

0,30 €

Show net prices

incl. 19% VAT , plus

Available immediately
Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)

Request personal offer!

These caps have good chemical resistance and good electrical properties. They have a convex head. Thanks to the fastening teeth, these caps snap on and adapt to the thickness of the frame up to a maximum indicated in the table.

Features:
Ã˜ B overall diameter mm: 19.8
H Overall height (mm): 10.4
Ã˜ Mounting hole: 17.4
for maxi panel Thickness (mm): 3.2
Material: polyamide 6/6.
Color: black or white.
Temperature range: -40Â°C / +105Â°C
Flamability rating: flame retardant and self-extinguishing UL94-V2.

Technical features

Artikel-Nr.:	10230146
HAN:	2674
Category:	Round Plugs
Manufacturers:	HEYCO
Item weight:	0,00 kg
