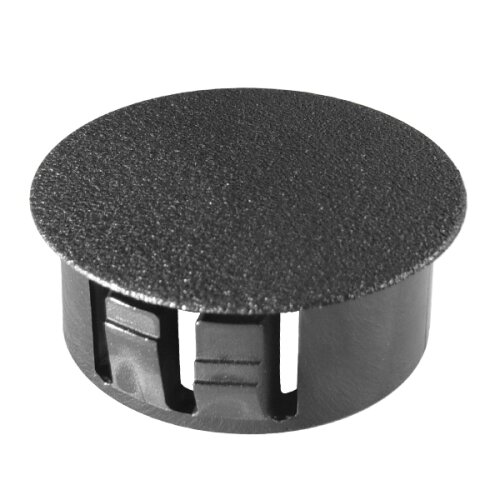

Heyco SNAP-IN Dome Plug 3046 DPT-1000 BLACK

0,36 €

incl. 19% VAT , plus

Available immediately
Delivery time: ca. 3 weeks (DE - int. shipments may differ)

These caps have good chemical resistance and good electrical properties. They have a convex head. Thanks to the fastening teeth, these caps snap on and adapt to the thickness of the frame up to a maximum indicated in the table.

Features:
Ã˜ B overall diameter mm: 30.6
H Overall height (mm): 14.3
Ã˜ Mounting hole: 25.4
for maxi panel Thickness (mm): 6.4
Material: polyamide 6/6.
Color: black or white.
Temperature range: -40Â°C / +105Â°C
Flamability rating: flame retardant and self-extinguishing UL94-V2.

Technical features

Artikel-Nr.:	10230165
HAN:	3046
Category:	Round Plugs
Manufacturers:	HEYCO
Item weight:	0,00 kg
