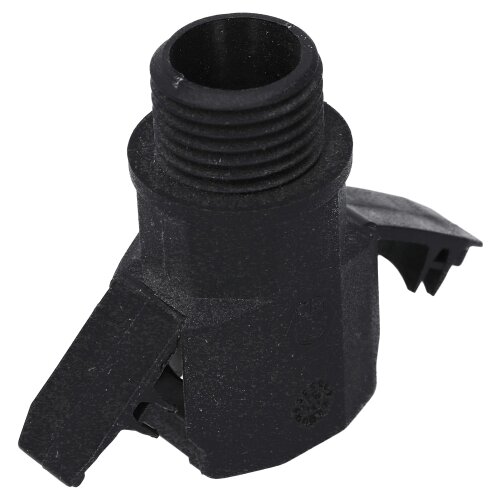

Schlemmer 3803412 hose screw connection SEM-FAST NW13/M16

Best sellers

1,79 €

Show net prices

incl. 19% VAT , plus

Available immediately
Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)

Pieces

Request personal offer!

The Sem Fast hose fitting is characterized by its quick and easy installation. The hose is simply inserted into the closed screw connection until it stops.

Material:
- Polyamide 6

Application temperature:
- from -40 to +120 Â°C
- Flame protection according to FMVSS 302

External thread:
M 12 x 1.5

For corrugated hose:
NW 10

Color:
black

Features:
- Conical sealing on the corrugated hose
- Thread sealing via sealing web
- Corrugated hose can be rotated in the screw connection
- High pull-out values
- Special locking technology
- Halogen-free
- Protection class IP 65 (IP 68* possible with O-ring)

Areas of application:
- Mechanical and plant engineering
- Vehicle construction
- Automation technology
- Shipbuilding

Assembly:
Separate the hose on a wave crest (optimal protection class for hose and screw connection)
Insert the hose with a slight twisting movement into the "closed" screw connection until it stops
Pull the corrugated hose slightly backwards into the screw connection (secure locking)

IP68*: To achieve protection class IP 68, mount the O-ring in the first trough after the section of the corrugated hose on the screw side.

Technical features

Artikel-Nr.:	10111324
HAN:	3803412
Category:	Various in stock
Manufacturers:	Schlemmer
NW:	NW 13
Art:	SEM-FAST conduit fitting
Item weight:	0,01 kg
Content:	1,00
