SR 4K-1 WHITE

0,11 €

incl. 19% VAT , plus

Available immediately
Delivery time: ca. 3 weeks (DE - int. shipments may differ)

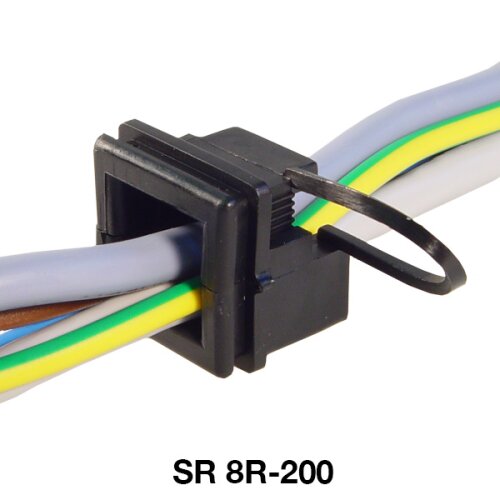

These cable clamps have good chemical resistance and good electrical properties. They offer valid electrical and mechanical protection to the cables, absorbing the traction, thrust and torsion forces that can be exerted on the cables themselves. They can be installed in round mounting holes (Ã˜G), but if you make a hole with the shape indicated by us in the drawing (G1) the cable clamp will not be able to rotate. To plug the holes with this template, DD type â€œDOUBLEâ€ plugs are available. The cable clamps are produced in two configurations: for flat cables and for round cables. They snap into place. For mounting in the structure, it is advisable to use the R CALIPER.

Features:
H mm: 12.7
Color: white
Specificity: for flat cables
G1 mm:
Panel thickness max mm: 2.4
for cable mm: 3x7.6 / 3.8x7.1 / 3.8x8.6 / 4.1x7.6
Material: polyamide 6/6
Operation Temperature: -18Â°C / +105Â°C
Flamability rating: UL94-V2
Material: polyamide 6/6.
Flame resistance: flame retardant and self-extinguishing UL94-V2.
Certification: UR, CSA.
