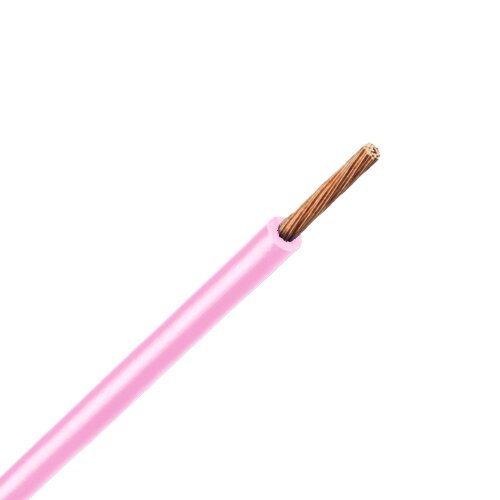

Lapp 4510081 PVC single wire H05V-K 0.5 mmÂ² pink 100m

- Contents: 100 m
- Fine-wire
- Copper conductors made from bare copper wires
- PVC-based core insulation
- Flame-retardant according to IEC 60332-1-2
- Core color: pink

23,43 €

Show net prices

0,23 € per 1 m

incl. 19% VAT , plus

Available immediately
Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)

Please note the minimum purchase quantity of 1 Units.

Split quantity allowed for this item (e.g. 0.5).

Request personal offer!

High-quality connection and control cable with a fine-stranded copper conductor made of bare copper wires according to stranded conductor class 5 according to IEC 60228 / VDE 0295.

The core insulation is PVC-based and also flame-retardant according to IEC 60332-1-2. The cable is ideal for: signal systems both on and under plaster in pipes, protected installation in and on lights as well as for the internal wiring of devices.

Design certification according to EN 50525-2-31 / VDE 0285-525-2-31
Flame retardant according to IEC 60332-1-2
Coil: d1 = 18 mm ; d2 = 200mm ; b = 85 mm

Technical data:

Manufacturer: Lapp Kabel&Leibele
Content: 100 meters
Designation: H05V-K 0.5 mmÂ² Pink
Type: 4510081 R100
Conductor material: copper
Conductor nominal cross section: 0.5 mmÂ²
Leader class: Kl.5 ; finely stranded
Number of cores: 1
Material of the core insulation: polyvinyl chloride (PVC)
Umbrella: no
Fire reaction class according to EN 13501-6: Eca
Flame retardant: according to IEC/EN 60332-1-2: Yes
Low smoke according to EN 61034-2: no
Cold-resistant according to EN 60811-504+505+506: no
Oil resistant according to EN 60811-404: no
Outer diameter approx.: 2.1 - 2.5 mm
Test voltage: 2000 volts
Nominal voltage U0: 300 volts
Nominal voltage U: 500 volts

Technical features

Artikel-Nr.:	10138090
GTIN:	4044773392685
HAN:	4510081
Category:	Lapp Verdrahtungsleitung H05V-K
Manufacturers:	Lapp
Cable cross-section:	0,5 mm²
Color:	Pink
Outer diameter in mm:	2,1 - 2,5
Item weight:	0,90 kg
