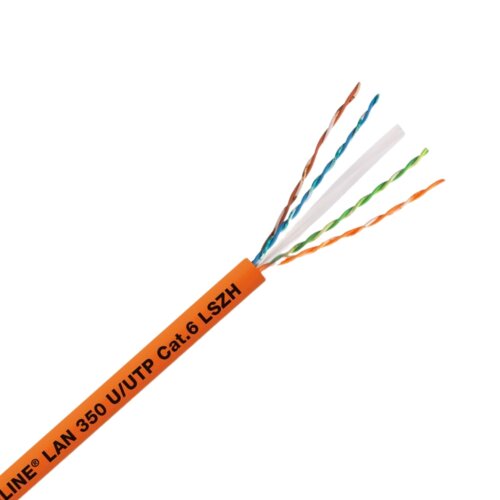

Lapp 2170955 Etherline Lan Cat.6 U/UTP 4x2xAWG24 data cable LSZH up to 350 MHz

In stock

Sold by the meter

1,16 €

Show net prices

incl. 19% VAT , plus

Available immediately
Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)

Request personal offer!

Ethernet cable of category 6, class E - tested up to 350 MHz

Lapp cable

Benefit:

LAN cable for structured building cabling in accordance with EN50173 and ISO/IEC 11801

Areas of application:

In areas with a very high density of end devices.
For the cabling of office, administrative and development buildings in the tertiary range (floor cabling).
Cable length in the tertiary range (horizontal range, floor) should be in accordance with standards ISO/IEC 11801 or EN 50173 must not exceed a length of 100 m (90 m cable duct + 10 m workplace)

Product features:

Transmission of digital and analog data signals, IEEE 802.3: 10/100/1000Base-T / IEEE 802.5: ISDN; FDDI; ATM / flame-retardant according to IEC 60332-1-2
Standard references / approvals: LAN CAT.6 cables from Lapp Kabel for "structured cabling systems" meet the requirements of EIA/TIA-568 and TSB36 as well as ISO/IEC 11801 and EN 50173

Construction:

Solid conductor, U/UTP: no overall and pair shielding, 2 cores to the pair, 4 pairs with separating cross, outer jacket as LSZH (orange RAL 2003) version

Data cable of category 6, class E - tested up to 350 MHz

Technical features

Artikel-Nr.:	10118585
GTIN:	4044777771523
HAN:	2170955
Category:	Lapp Etherline LAN Cat6 / Cat7 Ethernet cable
Manufacturers:	Lapp
Item weight:	0,06 kg
Content:	1,00 m
