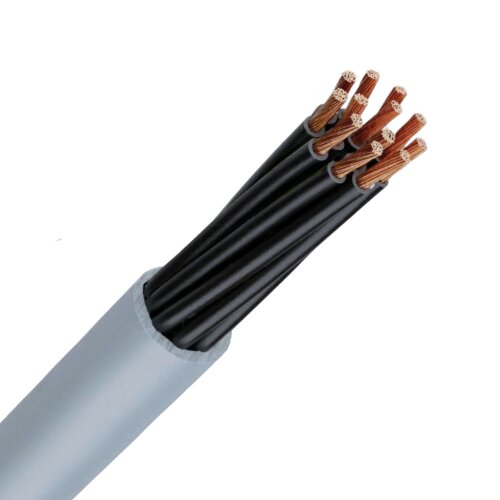

Lapp 1119857 Ã–lflex Classic 110 7X1mmÂ² PVC control cable without gn/ge protective conductor

In stock

Sold by the meter

2,85 €

Show net prices

incl. 19% VAT , plus

Available immediately
Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)

Request personal offer!

Lapp cable

ÖLFLEC CLASSIC 110

Fixed installation as well as occasional flexible use without tensile stress with free, non-recurring movement
Dry or damp rooms, with normal mechanical stress
Suitable for torsion applications that are typical in the loop of wind turbines (WKA)
In energy supply chains for travel distances of up to 5 m and 0.2 ... 1 million bending cycles
for the following dimensions: 0.5 to 2.5 mmÂ² and 2 to 7 cores
Large range of standardized lengths and individual cuts
Very large range of articles
Versions with up to 100 cores
Fine stranded wire made from bare copper wires
PVC core insulation LAPP P8/1
Cores stranded in layers
PVC jacket
gray (RAL 7001)
VDE Reg. No. 7030 for the following dimensions: up to 2.5 mmÂ²: 2 - 65 cores from 4 mmÂ²: 2 - 7 cores from 25 mmÂ²: 2 - 5 cores
Flame-retardant according to IEC 60332-1-2
Good chemical resistance
Oil resistant
according to DIN EN 50290-2-22 (TM54)

Technical features

Artikel-Nr.:	10118638
GTIN:	4044773061031
HAN:	1119857
Category:	Lapp Ölflex Classic 110 cable
Manufacturers:	Lapp
Cable cross-section:	1,0 mm²
Item weight:	0,13 kg
Content:	1,00 m
