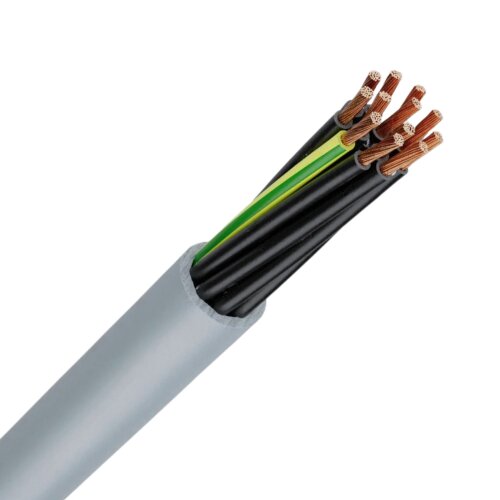

Lapp 1119307 Ã–lflex Classic 110 7G1.5mmÂ² PVC control cable with gn/ye protective conductor

In stock

Sold by the meter

3,44 €

Show net prices

incl. 19% VAT , plus

Available immediately
Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)

Request personal offer!

Fixed installation as well as occasional flexible use without tensile stress with free, not constantly recurring movement, Dry or damp rooms, with normal mechanical stress, Suitable for torsion applications that are typical in the loop of wind turbines (WKA), In energy chains for travel distances of up to 5 m and 0.2 ... 1 million bending cycles, for the following dimensions: 0.5 to 2.5 mmÂ² and 2 to 7 cores, Large range of standardized lengths and individual cuts, very large range of articles, versions with up to 100 cores, fine-wire strand made of bare copper wires, PVC core insulation LAPP P8/1, cores stranded in layers, PVC sheath, gray (RAL 7001), VDE Reg. No. 7030 for the following dimensions: up to 2.5 mmÂ²: 2 - 65 cores from 4 mmÂ²: 2 - 7 cores from 25 mmÂ²: 2 - 5 cores, flame-retardant according to IEC 60332-1-2, good chemical resistance, oil-resistant according to DIN EN 50290-2-22 (TM54),

Technical features

Artikel-Nr.:	10111127
GTIN:	4044773065138
HAN:	1119307
Category:	Lapp Ölflex Classic 110 cable
Manufacturers:	Lapp
Cable cross-section:	1,5 mm²
Item weight:	0,17 kg
Content:	1,00 m
