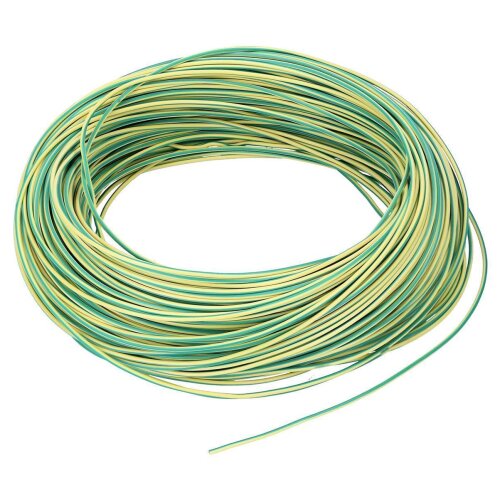

Lapp 0048000 Ã–lflex Heat 180 silicone cable SiF 0.5 mmÂ² green/yellow 100m ring

In stock

43,77 €

Show net prices

0,44 € per 1 m

incl. 19% VAT , plus

Available immediately
Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)

Pieces

Request personal offer!

Temperature range:
-50 Â°C to +180 Â°C
(provided there is sufficient ventilation)
Short-term: +200Â°C
Versatile stranded conductors with a wide temperature range
Ã¶LFLEXÂ® HEAT 180 SiF - silicone core cable for use in mechanical, plant and equipment construction with increased temperature requirements up to +180Â°C
Benefit:
Remaining after flame treatment SiO2 ash framework has insulating properties
Areas of application
Areas with high ambient temperatures in which conventional wire insulation materials become brittle after a short time
Typical areas of application:
- Control cabinet construction
- Equipment and apparatus construction
- Electric motor industry
- Sauna and solarium construction
- Heat and heating elements
- Lighting technology
- Fan construction
- Air conditioning technology
- Furnace construction
- Plastics processing
- Generator and transformer construction
Product features:
Halogen-free according to IEC 60754-1
(Proportion of gases containing halogen acid)
Corrosivity of fire gases according to IEC 60754-2 (degree of acidity)
Flame-retardant according to IEC 60332-1-2
Resistant to a Variety of oils, alcohols, vegetable and animal fats and other chemical media
Ensure sufficient ventilation, as the mechanical properties of silicone cables decrease prematurely from +100Â°C in the absence of air
Construction:
Fine-wire, tin-plated copper conductor
Silicone-based insulation

Technical features

Artikel-Nr.:	00013524
GTIN:	4044774688299
HAN:	0048000
Category:	Lapp silicone wire cable
Manufacturers:	Lapp
Cable cross-section:	0,5 mm²
Item weight:	0,90 kg
Content:	100,00 m
Dimensions ( Length ):	100,00 cm
