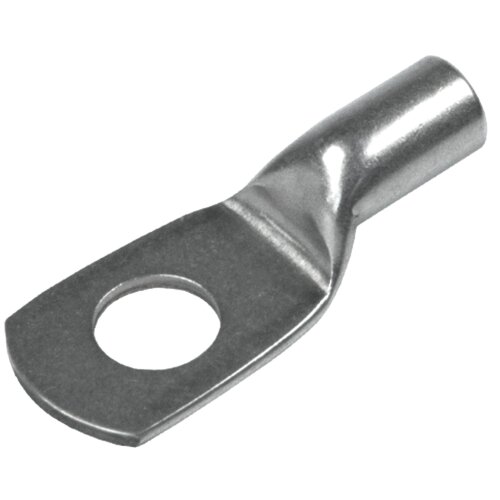

Kalitec NR1-M3 tubular cable lug pure nickel 0.5-1mmÂ² M3

Best sellers

Tubular cable lug pure nickel 0.5-1qmm M3

1,86 €

Show net prices

incl. 19% VAT , plus

Available immediately
Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)

Request personal offer!

In addition to compression cable lugs according to DIN 46235, there are also tubular cable lugs.
These differ from DIN cable lugs in terms of their dimensions.
They are usually shorter and have a different tube dimension.
In contrast to tubular cable lugs, compression cable lugs have a marking for pressing.
The sleeves of the compression cable lugs have one The opening of the tubular cable lugs is closed.
Depending on the model, tubular cable lugs have a small viewing hole.
In contrast to tubular cable lugs, crimp cable lugs are not suitable for single-wire solid conductors.
Tube cable lugs are made from a tube and crimp cable lugs are made from sheet metal, which means they have a soldered seam.

d1: 1.6mm
d3: 3.2mm
d2: 3.2mm
L1: 6.5mm
L: 12.5mm
a: 6mm

Technical features

Artikel-Nr.:	10122771
GTIN:	8014212191724
HAN:	NR1-M3
Category:	Nickel-Rohrkabelschuhe
Manufacturers:	Kalitec
Item weight:	0,00 kg
Dimensions ( Length × Width ):	1,25 × 0,65 cm
