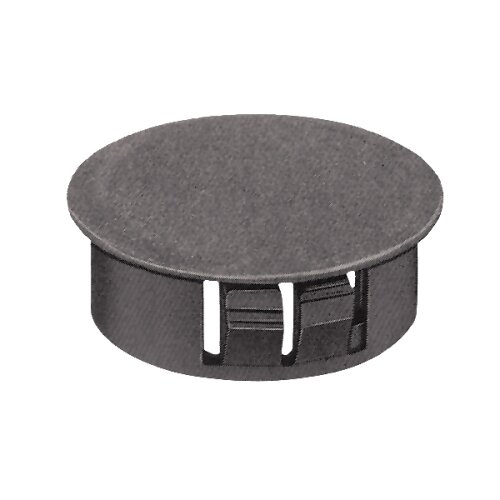

Heyco SNAP-IN Halogen free UL94-V0 Plug 2729 HFP-1093

0,95 €

incl. 19% VAT , plus

Available immediately
Delivery time: ca. 3 weeks (DE - int. shipments may differ)

These caps have good chemical resistance and good electrical properties. They have a convex head and are produced in a polyamide treated in such a way that, in the event of a fire, it does not burn and does not produce toxic gases. They contain neither halogens nor phosphorus and are very resistant to UV rays. Thanks to the fastening teeth, these caps snap on and adapt to the thickness of the frame up to a maximum indicated in the table.

Features:
Ã˜ B overall diameter mm: 30.9
H Overall height (mm): 11.5
Ã˜ Mounting hole: 27.8 - 28.6
for maxi panel Thickness (mm): 3.2
Material: polyamide 6/6.
Color: black.
Temperature range: max +105Â°C
Flamability rating: flame retardant and self-extinguishing UL94-V0.
