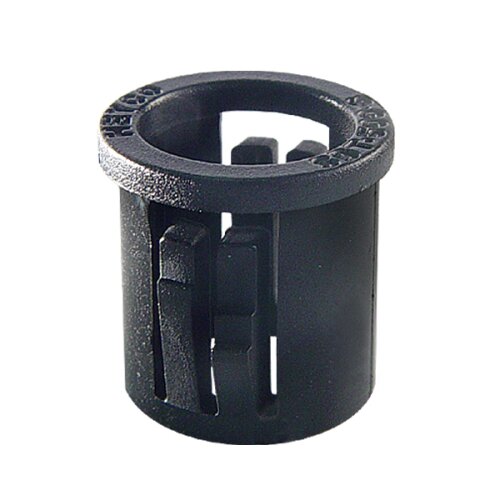

Heyco 3132 SBT 1250-16 BLACK snap-in cable entry grommet SNAP-IN, standard, 33.2 mm Ã˜

In stock

- Snap-through grommets
- Transforms rough-edged holes into smooth, insulated holes
- Snaps securely
- Insulates and protects mechanical cables, pipes and much more.
- UL approval as well as UR and CSA certification
- Made of high-qualitypolyamide

0,47 €

Show net prices

incl. 19% VAT , plus

Available immediately
Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)

Request personal offer!

These bushings have good chemical resistance and good electrical properties They can be used to convert the sharp or irregular edges of the holes into smooth and insulated. They offer effective electrical and mechanical protection for cables, ropes and pipes.

Thanks to the fixing teeth, these bushings lock into place and adapt to the thickness of the frame up to a maximum value indicated in the table.

Features:

Ã˜ A mm: 25.4
Ã˜ B mm: 33.2
Ã˜ G mm: 31.8
H total height (mm): 14.3
Color: black
Mounting hole Ã˜ mm: 31.8
S mm: 6.4
Max. Plate thickness mm: 6.4
Temperature range: max +105Â°C
Flammability class: flame retardant and self-extinguishing UL94-V2.
Certification: UR and CSA

Technical features

Artikel-Nr.:	10231144
HAN:	3132
Category:	Standard bushings
Manufacturers:	HEYCO
Material:	Polyamide
Color:	Black
Outer diameter in mm:	33,2
Maximum inside diameter in mm:	25,4
Mounting hole diameter in mm:	31,8
