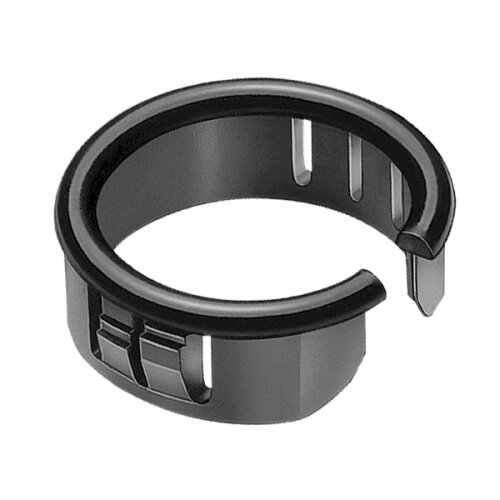

Heyco 2874 OCB-875 cable gland SNAP-IN open version 23.4 mm Ã˜

Heyco 2874 OCB-875 cable gland SNAP-IN open version 23.4 mm Ã˜

Heyco 2874 OCB-875 cable gland SNAP-IN open version 23.4 mm Ã˜

Heyco 2874 OCB-875 cable gland SNAP-IN open version 23.4 mm Ã˜

In stock

- For a plate thickness of max. 3.2 mm
- With side slot for the passage of components with a larger diameter
- Good electrical properties and chemical resistance
- Perfect for cables, ropes and pipes of all types Type
- With fastening teeth

0,34 €

Show net prices

incl. 19% VAT , plus

Available immediately
Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)

Request personal offer!

The side slot allows the insertion of pre-assembled cables or pipes whose segments have a larger diameter than the inner diameter of the bushing. In addition, the bushings can be installed in holes already traversed by cables or pipes. They offer effective electrical and mechanical protection for cables, ropes and pipes.

Thanks to the fixing teeth, these bushings lock into place and adapt to the thickness of the frame up to the maximum indicated in the table.

Features:

Ã˜ A mm: 17.7
Ã˜ B mm: 23.4
Ã˜ G mm: 22.2
H total height (mm): 10.3
Color: black
Mounting hole Ã˜ mm: 22.2
S mm: 3.2
Type of shape:
Max. Plate thickness mm: 3.2
Temperature range: max +105Â°C
Flammability class: flame retardant and self-extinguishing UL94-V2.
Certification: UR and CSA

Technical features

Artikel-Nr.:	10231236
HAN:	2874
Category:	open-closed bushings
Manufacturers:	HEYCO
Material:	Polyamide
Color:	Black
Outer diameter in mm:	23,4
Maximum inside diameter in mm:	14,3
Mounting hole diameter in mm:	22,2
Shipping weight:	0,10 kg
Item weight:	0,00 kg
