Heyco 2863 SUB-875 grommet with membrane 23.8 mm Ã˜

Heyco 2863 SUB-875 grommet with membrane 23.8 mm Ã˜

Heyco 2863 SUB-875 grommet with membrane 23.8 mm Ã˜

Heyco 2863 SUB-875 grommet with membrane 23.8 mm Ã˜

- Good chemical resistance
- Good electrical properties
- Absorb vibration
- Perfect for all types of cables and pipes
- With fastening teeth

0,42 €

Show net prices

incl. 19% VAT , plus

Available immediately
Delivery time: ca. 3 weeks (DE - int. shipments may differ)

Request personal offer!

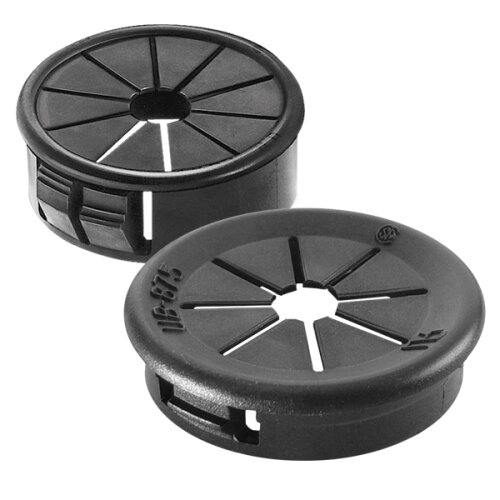

These Heyco grommets have good chemical resistance and good electrical properties. They absorb vibrations while providing insulation and mechanical protection for all types of cables and pipes. The flexible wedges adapt to any shape of cable or pipe with a minimum diameter of 7.6 mm and a maximum diameter of 62.7 mm.

Thanks to the fixing teeth, these bushings lock into place and adapt to the thickness of the frame up to the maximum indicated in the table.

Features:

Ã˜ A mm: 14.3
Ã˜ B mm: 23.8
Ã˜ G mm: 22.2
H total height (mm): 6.4
Colour: black
Mounting hole Ã˜ mm: 22.2
S mm: 1.6
Shape type: for thin frame
Max. Plate thickness mm: 1.6
Temperature range: max +105Â°C
Flammability class: flame retardant and self-extinguishing UL94-V2.
Certification: UR and CSA

Technical features

Artikel-Nr.:	10231214
HAN:	2863
Category:	bushings with membrane
Manufacturers:	HEYCO
Material:	Polyamide
Color:	Black
Outer diameter in mm:	23,8
Maximum inside diameter in mm:	14,3
Mounting hole diameter in mm:	22,2
Shipping weight:	0,10 kg
Item weight:	0,00 kg
