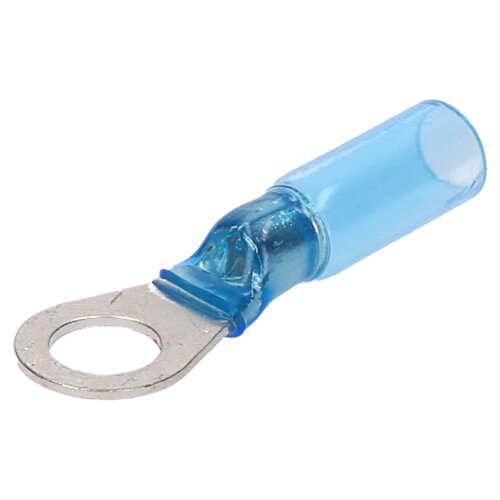

BW-M6 Crimpseal ring cable lug 1.5-2.5mmÂ² blue M6

Best sellers

Ring cable lug with inner adhesive

0,76 €

Show net prices

incl. 19% VAT , plus

Available immediately
Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)

Pieces

Request personal offer!

Ring cable lug with M6 blue shrink insulation for cables AWG16-14 or 1.5 - 2.5mmÂ².

Crimp connector covered with adhesive-coated, radiation-crosslinked polyolefin heat-shrink tube.

Shrink ratio 3:1.

Continuous use temperature -40Â°C to +110Â°C.

The Simple, quick solution for tensile, moisture-tight cable connections.
Insert the stripped cables at the ends into the connector and then press the crimp sleeve. Then heat the shrink tubing at the ends until the glue comes out at the ends.

Technical features

Artikel-Nr.:	00011027
GTIN:	4232592052310
HAN:	BW-M6
Category:	Heatshrink ring terminal
Manufacturers:	DSG-Canusa
Cable cross-section:	1,5 mm² 2,5 mm²
Item weight:	0,00 kg
Content:	1,00
