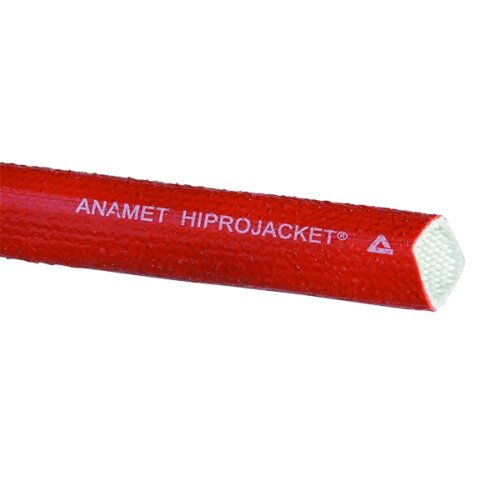

Anamet 3360251 Hiprojacket Aero red HJ-16 NW25 / 1"

In stock

60,52 €

incl. 19% VAT ,

Available immediately
Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)

Pieces

Please note the permissible order quantity of 1 Pieces.

The highest possible heat protection for cables, hydraulic, cooling and pneumatic hoses. This uniformly woven fiberglass hose with a thick silicone jacket is manufactured in accordance with the Aerospace Standard SAE AS1072. This complex production process allows the hose to pass the AS 1055 test. Hiprojacket offers the highest short-term flame protection combined with very good heat reduction. When used as a cable protective conduit, there is a complete series of screw connections for easy installation in various thread versions. It is resistant to hydraulic fluids, various lubricating oils and fuels. Hiprojacket protects against small amounts of melted materials, occasional flames, heat radiation, cooling in cooling hoses, energy loss in lines and hoses. Personal protection can also be carried out very well. Hiprojacket is used in aerospace, military technology, steelworks, foundries, glass and ceramics works, as well as in mechanical engineering, plant engineering and the rail vehicle industry.

Construction: â€œTightly wovenâ€ E-glass yarn inner tube, thick-walled construction that meets the requirements of the Aerospace Standard SAE AS 1072 Type 2.
Sheath Specification: Iron oxide silicone rubber, high oil resistance, halogen free, good short flame resistance, very good temperature reduction, withstands very well small amounts of liquid metal, aluminum, glass etc.
Special approvals: fire test DIN 5510-2: S4/SR2/ ST2. Ox. index LOI = 39.2. Flame extinguishing according to UNI CEI 11170-3; NF EN ISO 11925-2 (15 and 30 sec.).
EN 45545-2 R22 and R23 HL1/HL2/HL3;
NF F 16-101 Class I2 F1. Enables hose applications SAE AS 1055 test.
Temperature range: -55 Â°C to +260 Â°C continuous temperature. Flame treatment up to +800 Â°C for approx. 20 minutes. Radiant heat up to +800 Â°C for 20 minutes. Liquid metal contact up to +1640 Â°C for 15-30 seconds.
Sheath color: Red.

Inside and outside diameter in mm:
25 x 31

Ordering information:
Price per meter
the order quantity will be delivered in one piece

Technical features

Item information	Value
Artikel-Nr.:	00018018
GTIN:	4232592054888
HAN:	3360251
Category:	Anamet Hüftschutzjacke Aero
Manufacturers:	Anamet
Content:	1,00
