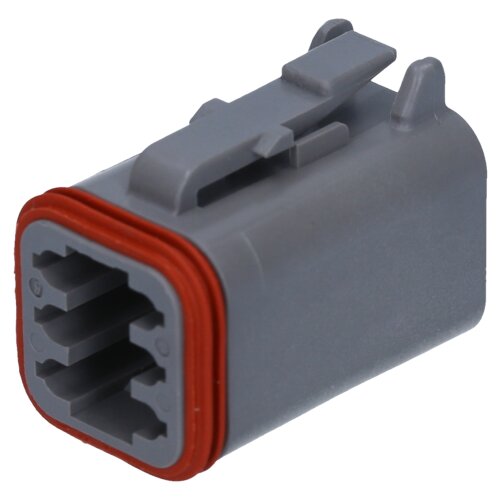

Amphenol AT06-6S socket housing 6-pin plug-in compatible with DT06-6S

In stock

2,78 €

incl. 19% VAT , plus

Available immediately
Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)

Pieces

AS-6SF 111 cable socket AT series socket, 6-pin, crimp connection insulation diameter 2.24mm - 3.68mm, contact size 16 rated voltage 250V, rated current 13A cross section 0.34mmÂ² - 2.5mmÂ² AWG20 - AWG14 temperature range -55Â°C to 125Â°C

Technical data of the article AT06-6S:
Manufacturer: Amphenol
Series: Cable socket
Manufacturer name: AT06-6S
Manufacturer short name: Female cable connector 6-pin
Category: Amphenol Series-A
Type: Cable socket AT series
Design: socket
Contact size: size 16
Connection technology: Crimp connection
Number of poles: 6
Labeling: 1 - 6
Rated voltage: 250V
Rated current: 13A
Insulation resistance: min. 1 gigaohm at 25Â°C
Cross section:
mmÂ²: 0.34mmÂ² - 2.5mmÂ²
AWG: AWG20 - AWG14
Suitable for core diameter:
Insulation diameter: 2.24mm - 3.68mm
Dimensions:
Length: 31.4mm
Width: 18.2mm
Height: 24.9mm
Temperature range: -55Â°C to 125Â°C
Mating cycles: >=100
Protection rating: IP67
Product features
Environment:
UV-resistant

Technical features

Artikel-Nr.:	10157505
HAN:	AT06-6S
Category:	Amphenol Connector AT-Series
Manufacturers:	Amphenol
Item weight:	0,01 kg
Content:	1,00
