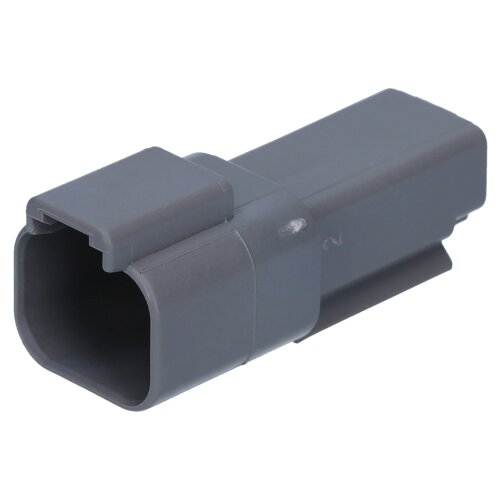

Amphenol AT04-2P connector housing 2-pin plug-in compatible with DT04-2P

Best sellers

1,14 €

incl. 19% VAT , plus

Available immediately
Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)

Pieces

AS-2SM 105 cable connector AT series male, 2-pole, crimp connection insulation diameter 2.24mm - 3.68mm, contact size size 16 rated voltage 250V, rated current 13A cross section 0.34mmÂ² - 2.5mmÂ² AWG20 - AWG14 temperature range -55Â°C to 125Â°C

Technical data of the article AT04-2P:
Manufacturer: Amphenol
Series: Cable connector
Manufacturer name: AT04-2P
Manufacturer short name: Male cable connector 2pol
Category: Amphenol Series-A
Type: Cable connector AT series
Design: pin
Contact size: size 16
Connection technology: Crimp connection
Number of poles: 2
Labeling: 1 - 2
Rated voltage: 250V
Rated current: 13A
Insulation resistance: min. 1 gigaohm at 25Â°C
Cross section:
mmÂ²: 0.34mmÂ² - 2.5mmÂ²
AWG: AWG20 - AWG14
Suitable for core diameter:
Insulation diameter: 2.24mm - 3.68mm
Dimensions:
Length: 43.6mm
Width: 17.1mm
Height: 17.0mm
Temperature range: -55Â°C to 125Â°C
Mating cycles: >=100
Protection rating: IP67
Product features
Environment:
UV-resistant
Material:
Housing: thermoplastic
Seal: silicone elastomer

Technical features

Artikel-Nr.:	10157498
HAN:	AT04-2P
Category:	Amphenol Connector AT-Series
Manufacturers:	Amphenol
Item weight:	0,00 kg
Content:	1,00
