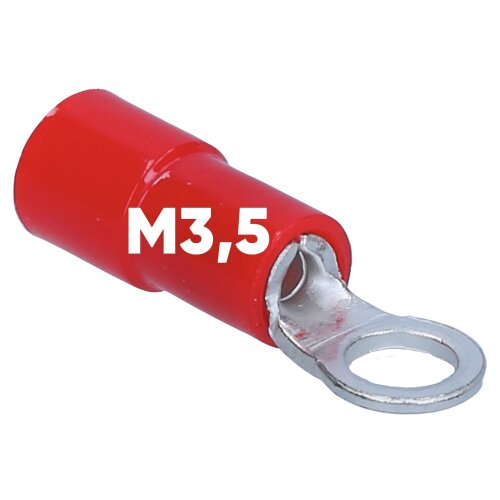

Kalitec RKSRM3.5 ring cable lug insulated 0.5-1.5mmÂ² M3.5 red

Kalitec RKSRM3.5 ring cable lug insulated 0.5-1.5mmÂ² M3.5 red

Kalitec RKSRM3.5 ring cable lug insulated 0.5-1.5mmÂ² M3.5 red

Kalitec RKSRM3.5 ring cable lug insulated 0.5-1.5mmÂ² M3.5 red

Kalitec RKSRM3.5 ring cable lug insulated 0.5-1.5mmÂ² M3.5 red

Kalitec RKSRM3.5 ring cable lug insulated 0.5-1.5mmÂ² M3.5 red

Kalitec RKSRM3.5 ring cable lug insulated 0.5-1.5mmÂ² M3.5 red

Best sellers

0,10 €

Show net prices

incl. 19% VAT , plus

Available immediately
Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)

Pieces

Request personal offer!

The special funnel shape of the PVC collar has been specially developed to compensate for the "step" of the copper sleeve.
Our "RKSR" pallet therefore enables easier insertion of the conductor: all strands are guided into the sleeve.

With our new "RKSR" range, there is no need to twist the strands.
The wire can be inserted directly into the connector: this saves time during assembly.

Since all the wires are inserted into the sleeve, the conductor is completely crimped: this guarantees absolutely reliable crimping, both electrically and mechanically.

Our technicians are available for further information!

Dimensions:

Conductor cross section: 0.5 - 1mmÂ²

Type: R 3.5-1.5
AWG: 20-16
Mat. : PVC

d: 3.7mm
b: 5.5mm
D: 4mm
L: 16.05mm
b: 11.3mm

Technical features

Artikel-Nr.:	10234824
GTIN:	4262389438584
HAN:	RKSRM3,5
Category:	insulated ring cable lug
Manufacturers:	Kalitec
Cable cross-section:	0,5 mm² 0,75 mm² 1,0 mm² 1,5 mm²
Content:	1,00
Dimensions ( Length × Width × Height ):	1,61 × 1,13 × 0,55 cm
